NV Control System manufactures world-class electrical and pneumatic actuators, industrial valves, and dampers — trusted by ABB, BHEL, Mahindra, Reliance, and 30+ industry leaders.
From low-torque quarter-turn actuators to high-thrust linear drives — every product is built at our Vasai & Palghar manufacturing units.

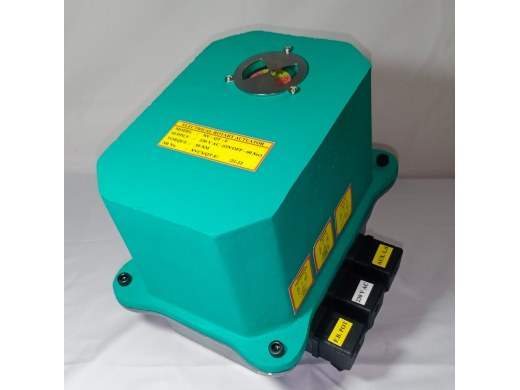

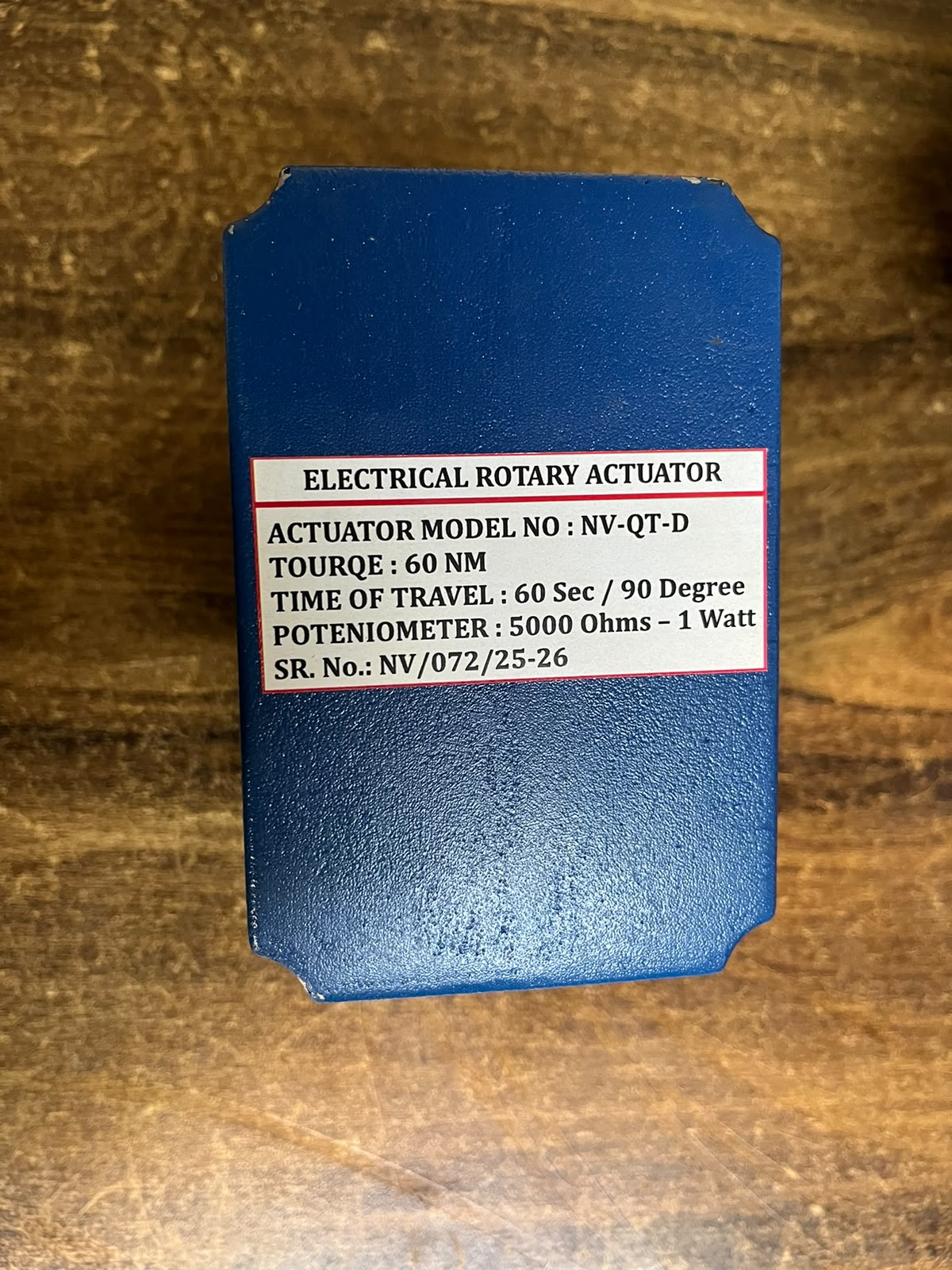

Low-torque quarter-turn actuator with single-phase motor, adjustable 30–180° rotation. Ideal for butterfly valves, ball valves, and dampers.
Compact, lightweight quarter-turn actuator with spur gear–pinion drive. Face mounting, transparent position indicator dome.
High-torque three-phase induction motor quarter-turn actuator with worm gear drive. Manual override provided for power failure safety.
Low-thrust single-phase linear actuator for slide gates, damper flaps, and similar applications with stroke up to 300mm.
High-thrust three-phase linear actuator with electrical safety interlock and manual hand-lever override for demanding industrial applications.

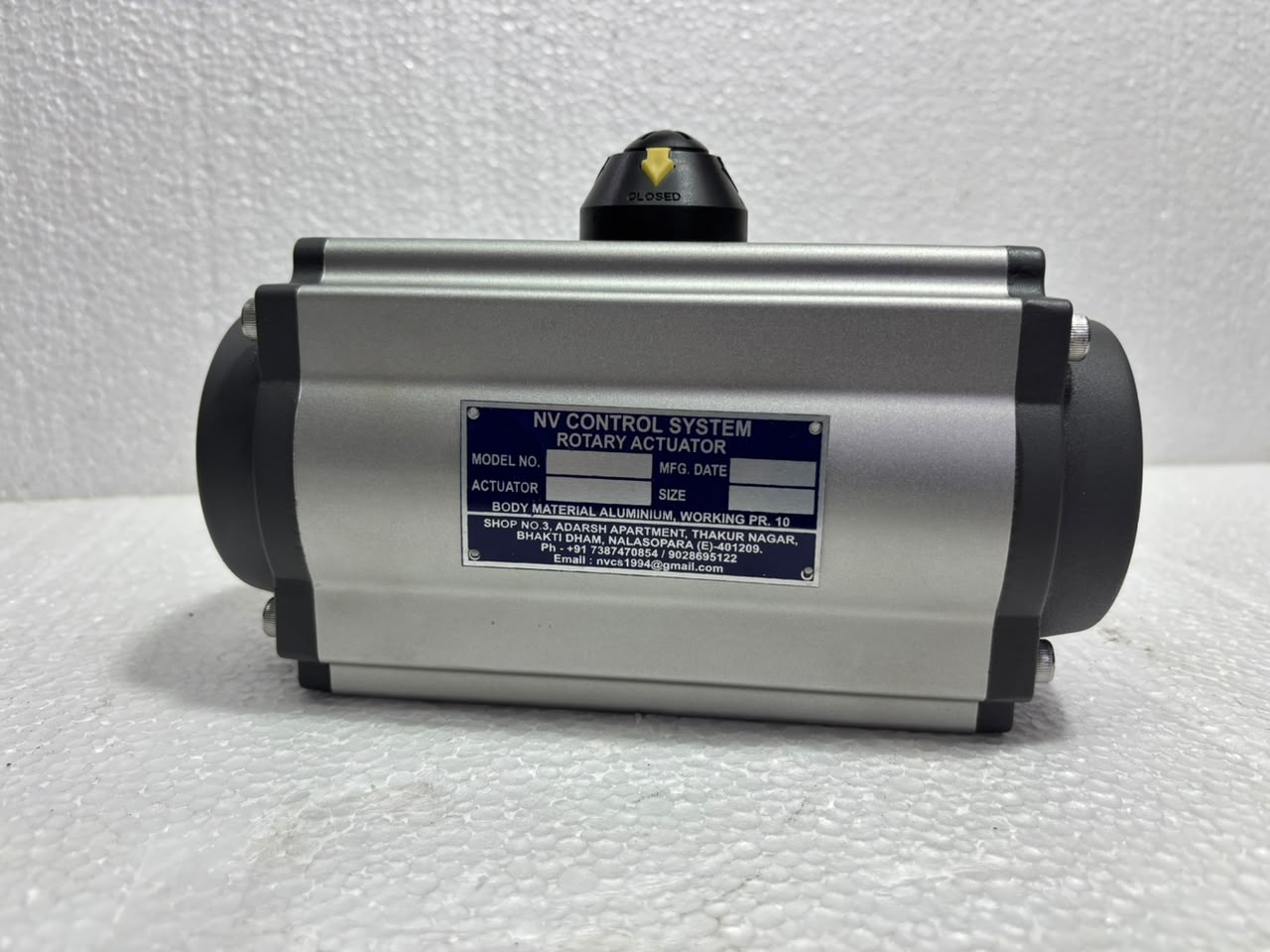

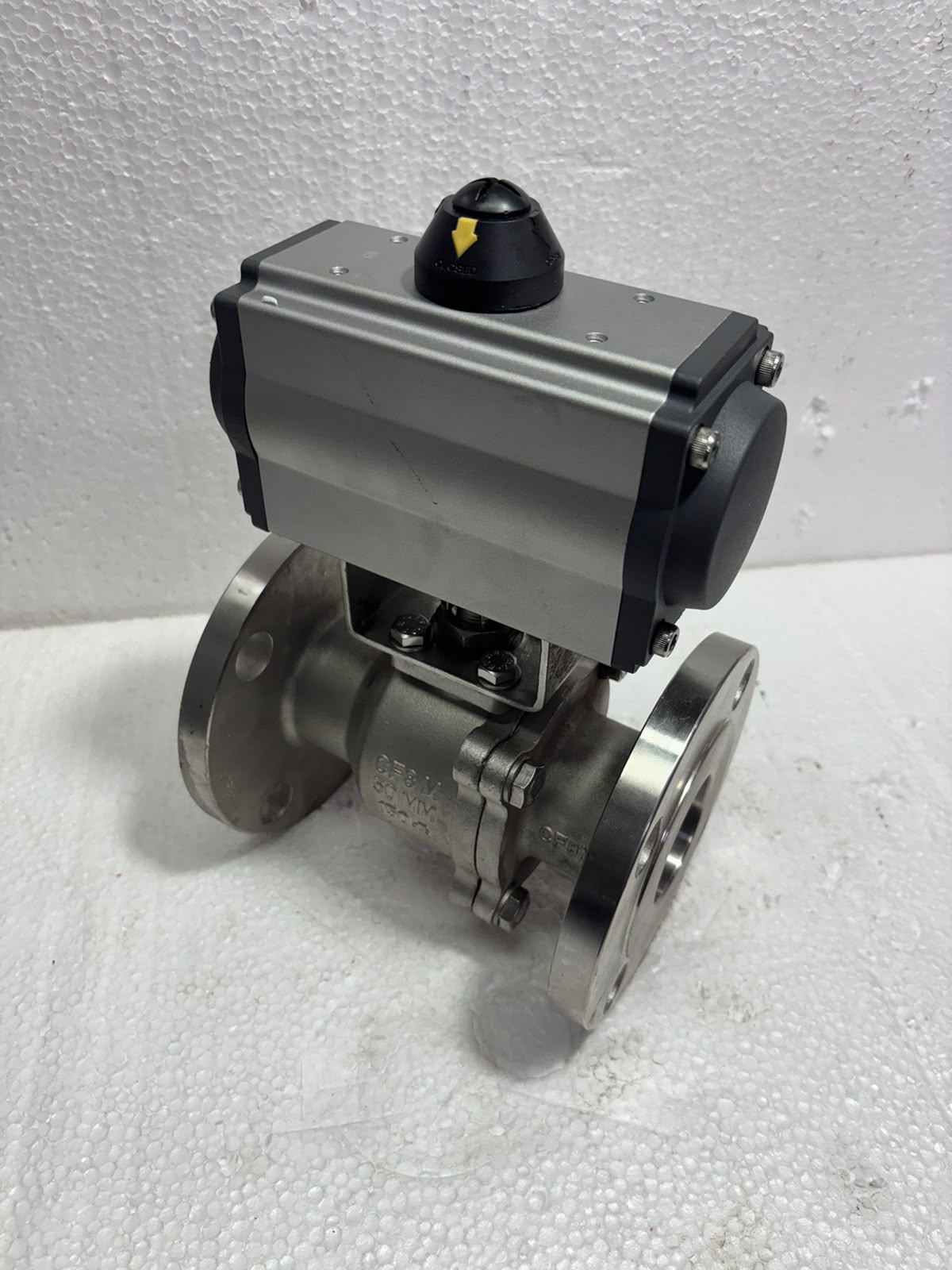

Dual rack-and-pinion design with hard-anodized aluminum alloy body. Available as double-acting or spring-return single-acting. ISO 5211 compliant, NAMUR mount.
Interface unit converting 4–20mA / 0–10V modulating signals into accurate open/close/proportional actuator commands with digital position display.

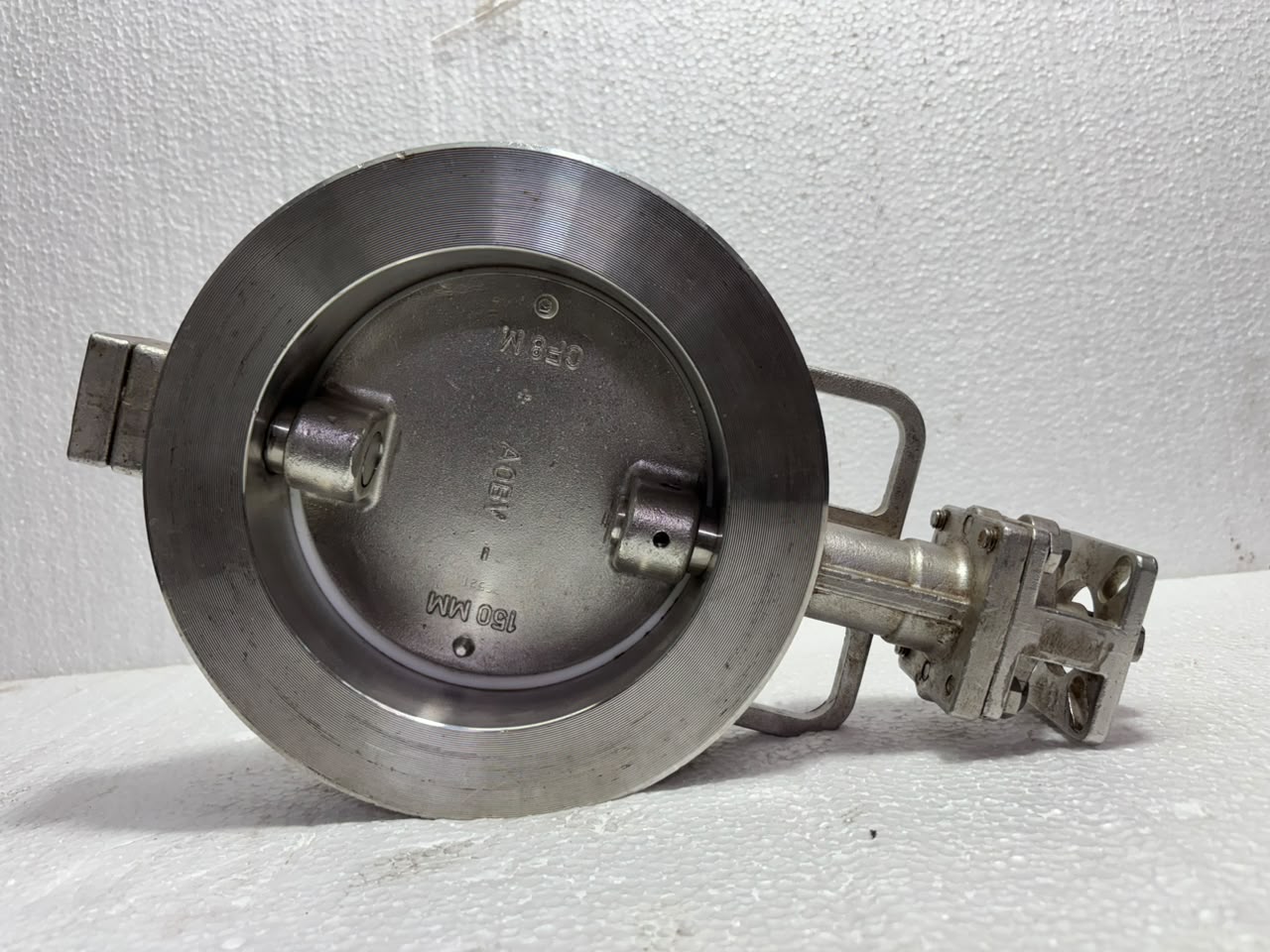

Wafer-type tight shut-off butterfly valve with QT-series electrical actuator. Available in CI, WCB, SS304, SS316 body materials.
Standard specification matrix across all actuator families. Custom configurations available on request.
| Series | Output Type | Torque / Thrust | Power Supply | Enclosure | Limit Switches | Mode of Control | Transmission |
|---|---|---|---|---|---|---|---|
| QT | Rotary – Quarter Turn | 0.5 – 10 Mkg | Single Phase | IP 65 | 1 No + 1 NC | On/Off & Regulating | Spur Gear – Pinion |
| QTR | Rotary – Quarter Turn | 20 – 300 Mkg | Three Phase | IP 65 | 2 No + 2 NC | On/Off & Regulating | Worm Gear |
| SL | Linear | 60 – 100 Kgf | Single Phase | IP 65 | 1 No + 1 NC | On/Off & Regulating | Screw Nut |
| TL | Linear | 50 – 3000 Kgf | Three Phase | IP 65 | 2 No + 2 NC | On/Off & Regulating | Screw Nut |
| PRA | Pneumatic Rotary | 12 – 1890 Nm | 2.5 – 8 Bar Air | Hard Anodized | NAMUR | Double / Spring Return | Rack & Pinion |
From public sector giants to private manufacturers — NVCS actuators run in some of India's most demanding plants.
Tell us your torque, thrust, or process requirement — our engineers will recommend the right product and configuration.
