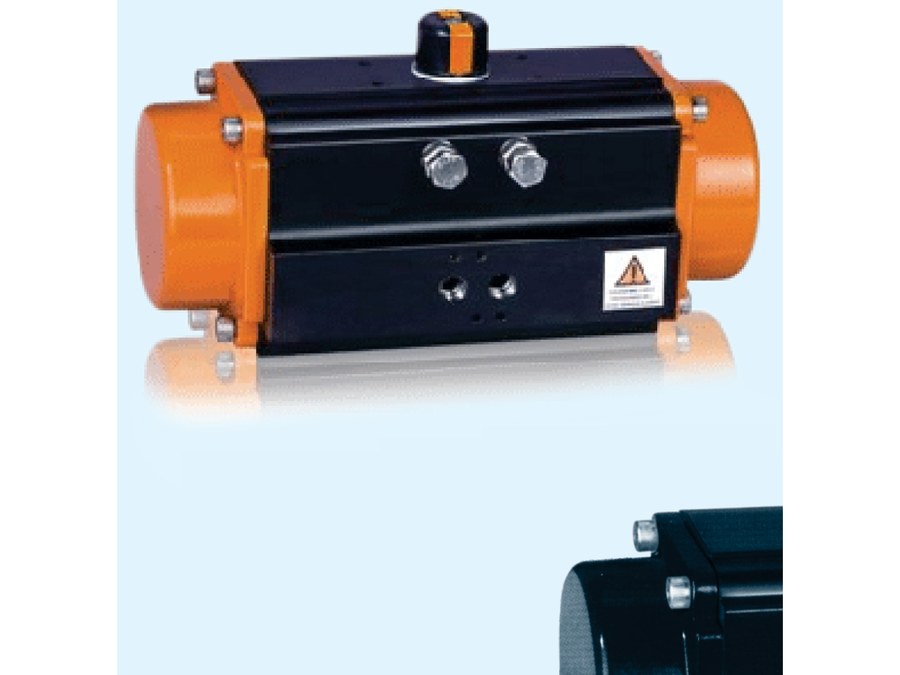

Pneumatic Actuator
Dual rack-and-pinion pneumatic actuator, double acting & spring-return, ISO 5211 / NAMUR compliant.
Pneumatic Actuator

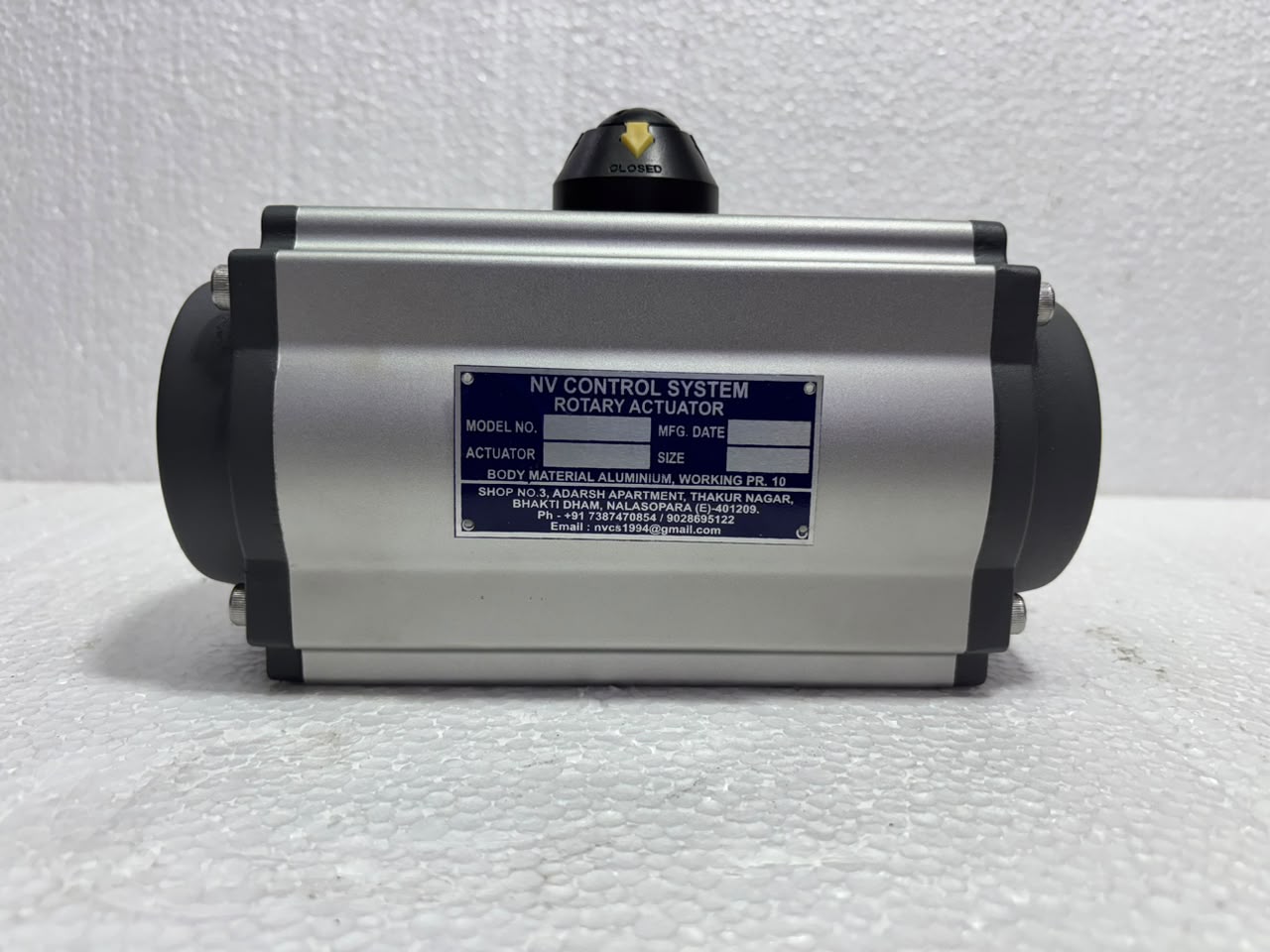

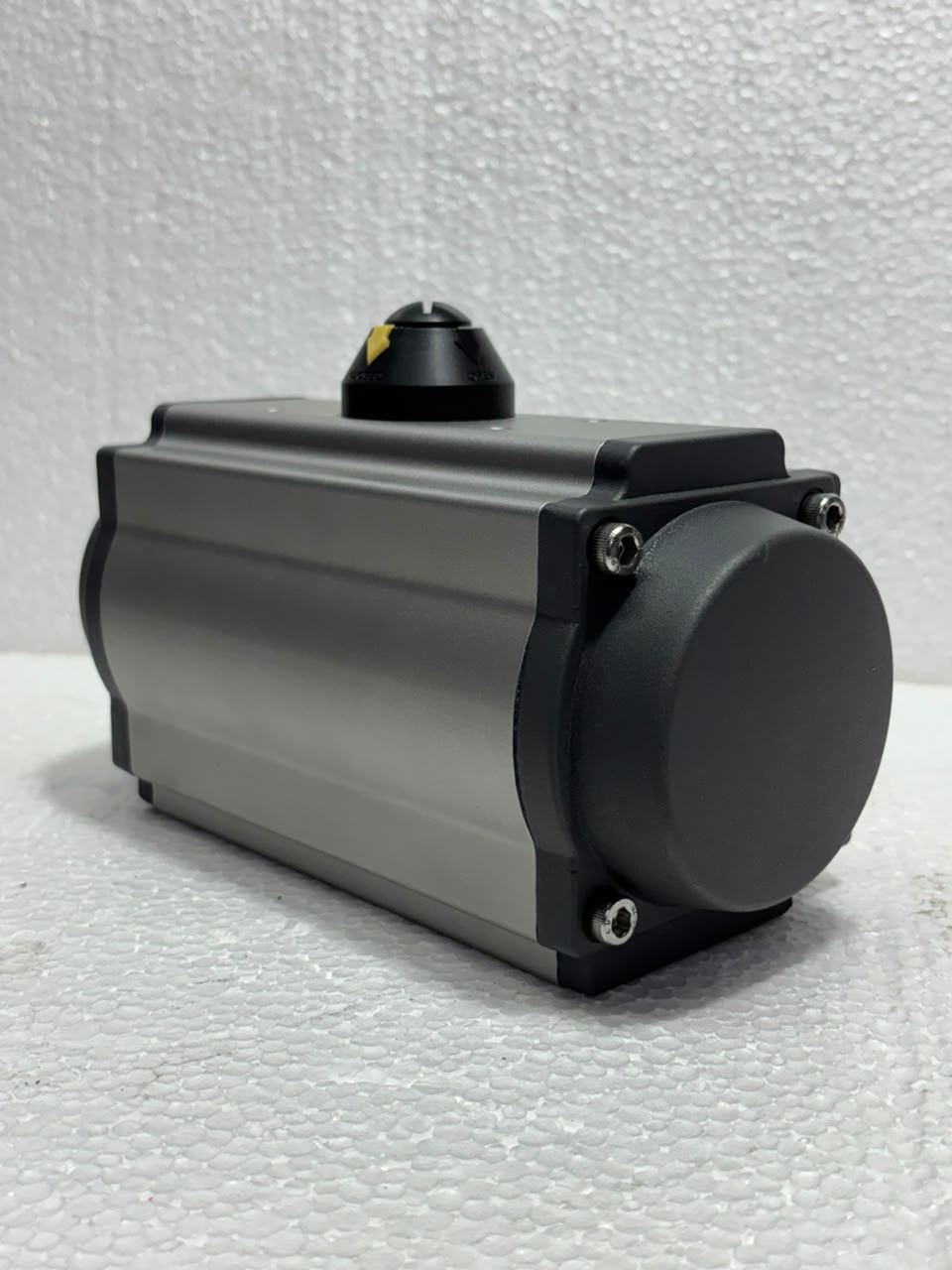

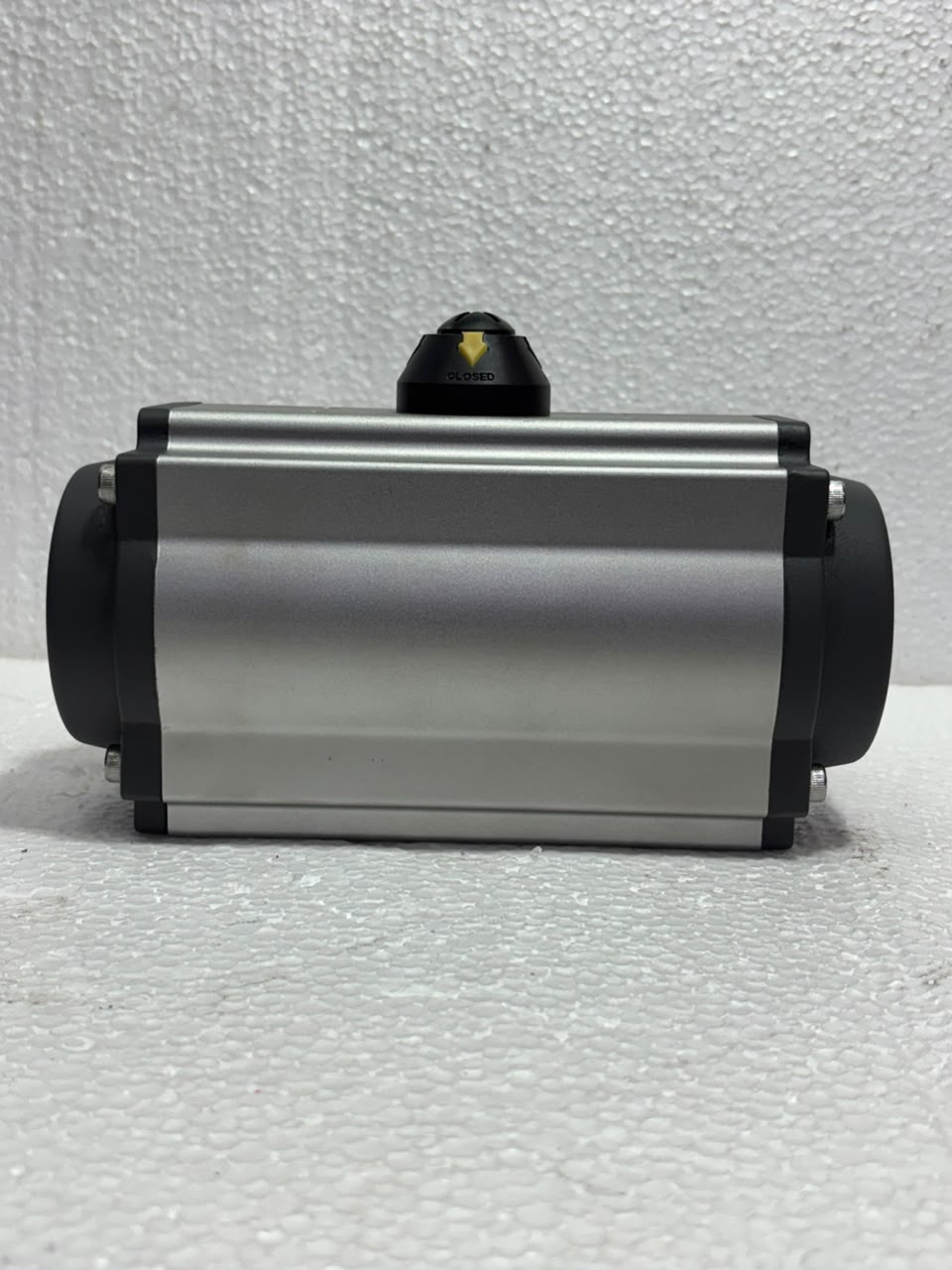

Our pneumatic actuator uses a dual rack-and-pinion design with an extra-wide base, manufactured in full compliance with ISO 5211 and with a NAMUR VDI/VDE 3845 top-plate for direct mounting of flameproof or weatherproof solenoid valves, limit switches and positioners without adapter kits.
The extruded aluminium alloy body is hard anodised for corrosion protection with a honed internal bore that reduces piston friction, while the anti-blow-out pinion is electroless nickel plated for wear resistance. Double-acting and spring-return (fail-safe) versions are built on the same platform across ten body sizes, 055 through 200.
Engineered For Reliable Performance
- Dual rack & pinion design, extra-wide base, ISO 5211 compliant
- Hard-anodised extruded aluminium alloy body

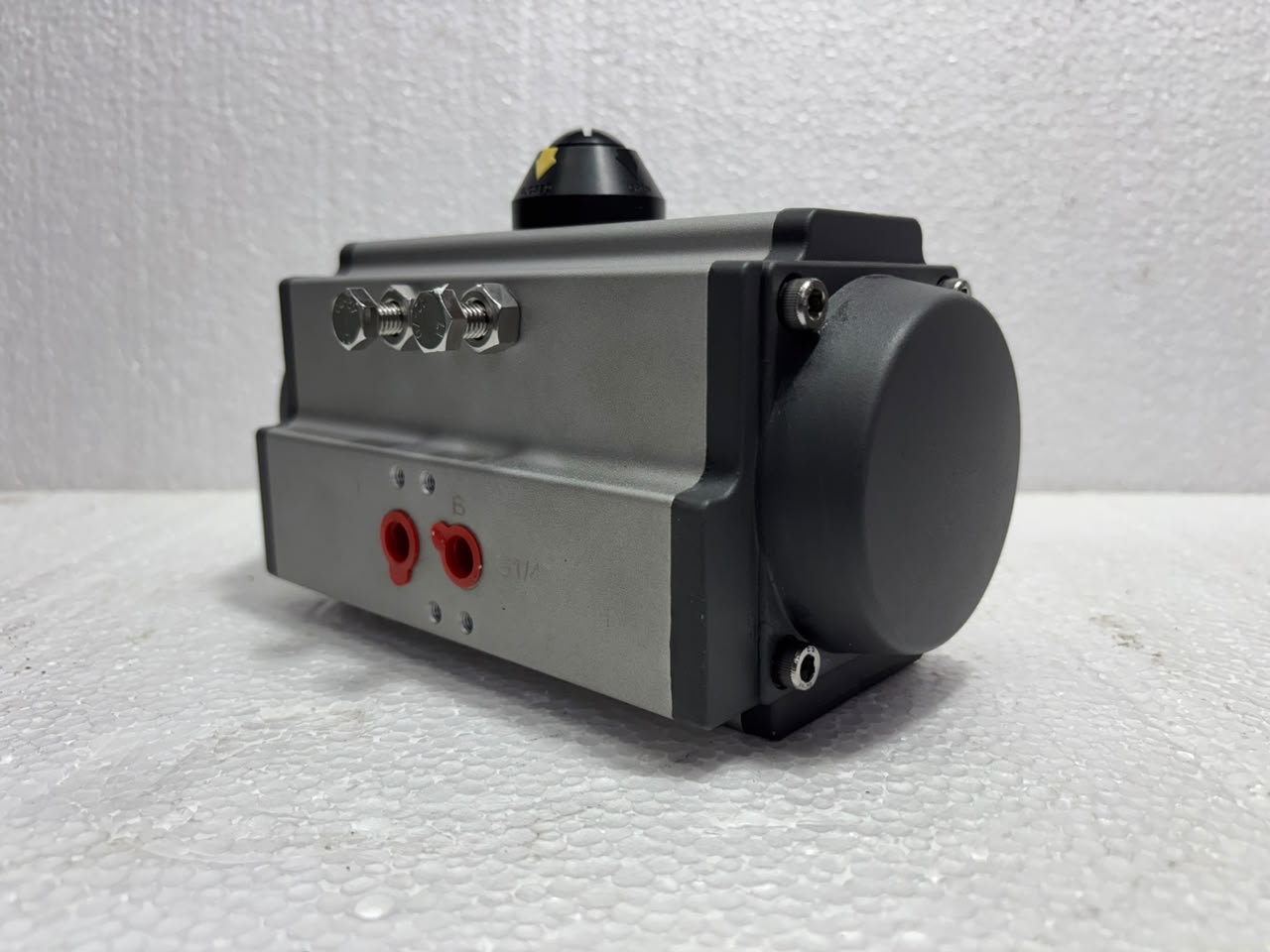

- NAMUR VDI/VDE 3845 top-plate for direct accessory mounting
- Anti-blow-out, electroless nickel-plated pinion
- Modular pre-loaded spring cartridge for fail-safe operation
- Bi-directional external travel stop adjustment (±5° at 85°–95°)
Specification Sheet
Standard configuration shown below — custom torque, pressure, material and end-connection combinations are available on request.
| Design | Dual rack & pinion, double acting / spring return |
|---|---|
| Sizes | 055, 065, 075, 085, 100, 115, 125, 150, 175, 200 |
| Torque output (double acting) | 12 Nm (size 055 @ 2.5 bar) – 1,890 Nm (size 200 @ 8 bar) |
| Air supply pressure | 2.5 – 8 bar, dry or lubricated clean compressed air |
| Rotation | 90° ± 5°, adjustable 0°–90° (full scale optional) |
| Body material | Extruded aluminium alloy, hard anodised |
| Seal material / temperature | NBR -20°C to +80°C · Viton -20°C to +150°C · Silicone -35°C to +80°C |

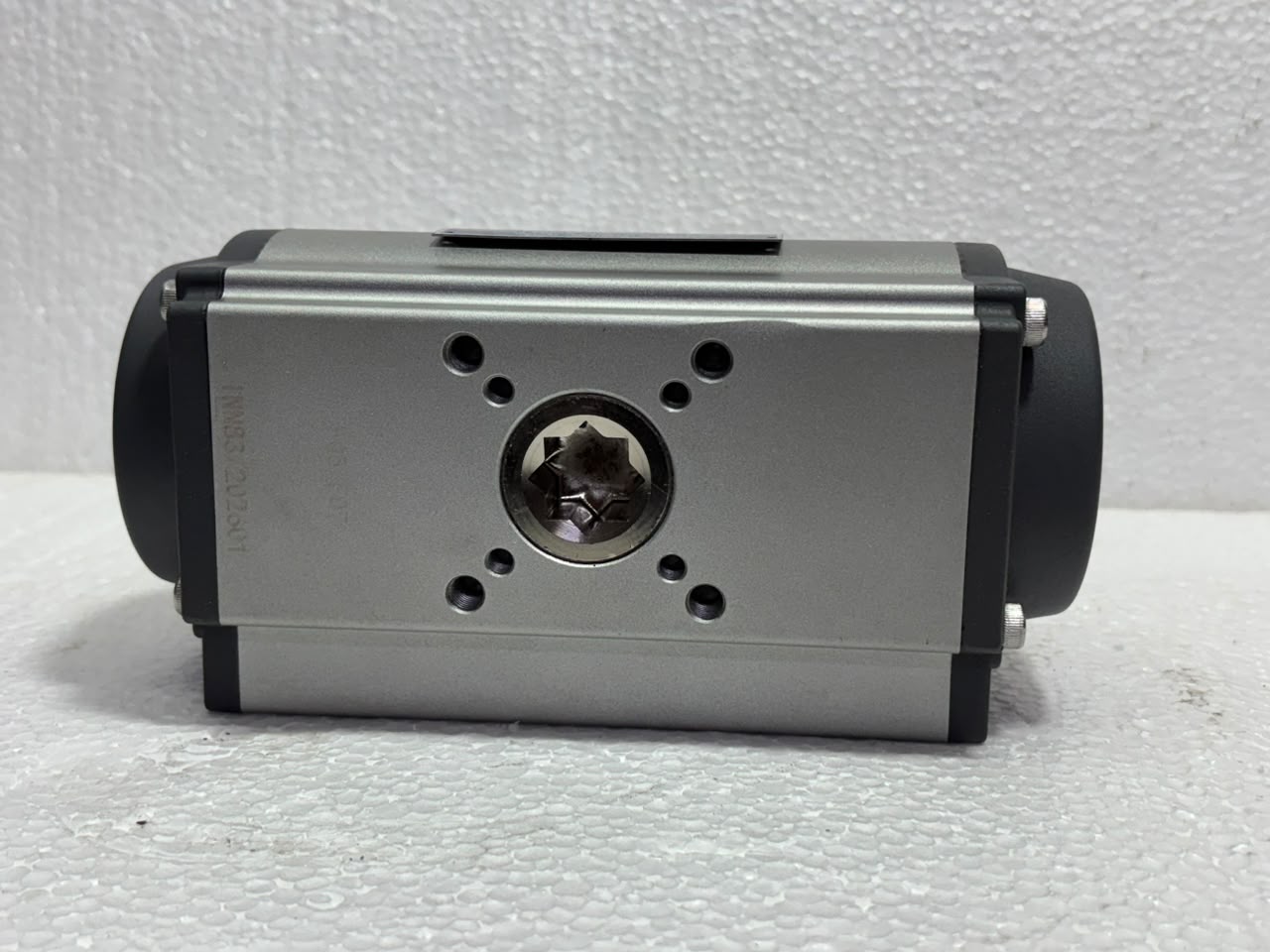

| Mounting interface | ISO 5211 flange · NAMUR VDI/VDE 3845 |
| Fasteners | Stainless steel |
Where It's Used
Pneumatic Actuator — Technical Datasheet
Full dimensional drawings, torque/thrust tables and material certificates (PDF)
